Ürün ayrıntıları:
|
| Malzeme: | Fibre Boru | Renk: | Beyaz |
|---|---|---|---|
| anma gerilimi: | 550VDC/690VAC veya daha düşük | Anma akımı: | 16A-100A |
| Kesinti Kapasitesi: | DC20KA/AC100KA | sertifikalar: | UR,UL |
| Koruma türü: | AR | Çevresel koruma: | Rohs, ULAŞMAK |
| Vurgulamak: | AC100KA Elektrikli Araç Sigortaları,bs88 Elektrikli Araç Sigortaları,bs88 motor anma sigortaları |
||

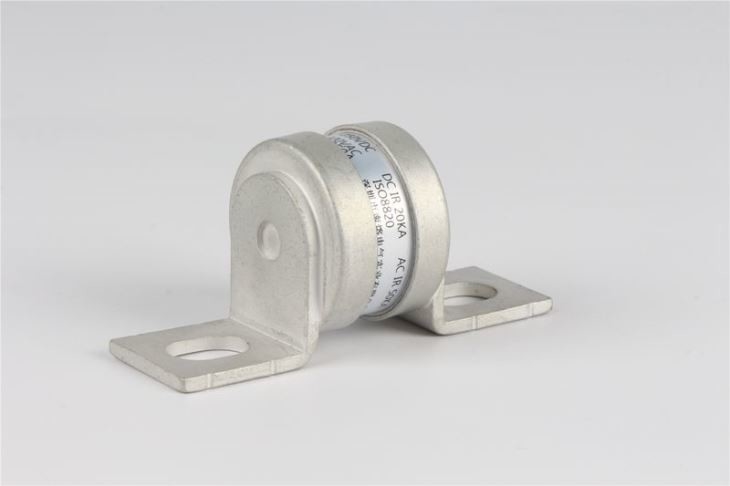

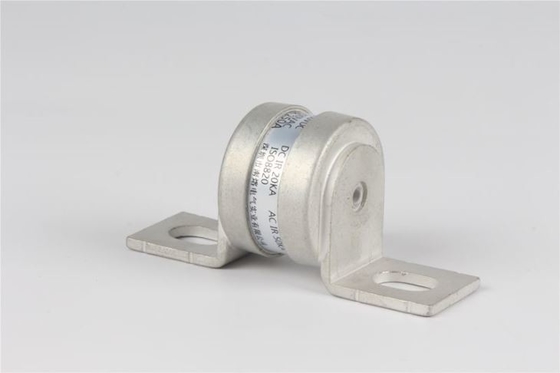

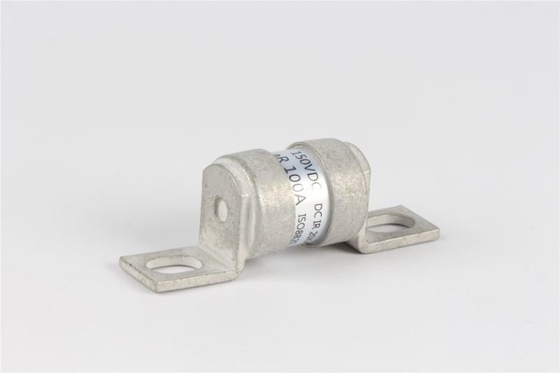

Beyaz Elektrikli Araç Sigortaları, AC100KA Bs88 Motor Anma Sigortaları
Malzeme:
Noumenon: Seramik
Pimler: Bakır alaşımı
Ürün tanıtımı:
|
anma gerilimi |
AC240V/DC150V |
Tip Koruma |
aR |
| Anma akımı | 6A-900A |
Kapasiteyi aşmak |
AC100KA, DC20KA |
|
Gereksinimi Karşılayın
|
UL248-13,ISO8820,JASO-D622,GB/T13539, Avrupa ve RoHS direktifi |
Notlar |
UL,CCC |
Ürün tipi
| Sayı |
modeli |
Ürün Kodu |
Anma akımı (A) |
I²t(A²Sn) |
Güç tüketimi (K) |
|
| Ark Öncesi | Ark Sonrası | |||||
| 1 | LCP/LCT | HBD-6LCP/HBD-6LCT | 6 | 2.00 | 8.8 | 1.00 |
| HBD-10LCP/HBD-10LCT | 10 | 3.76 | 21.6 | 2.48 | ||
| HBD-12LCP/HBD-12LCT | 12 | 6.92 | 31.6 | 2.48 | ||
| HBD-16LCP/HBD-16LCT | 16 | 19.7 | 98.4 | 2.50 | ||
| HBD-20LCP/HBD-20LCT | 20 | 24.6 | 156.0 | 3.82 | ||
| 2 | LEP/LET | HBD-25LEP/HBD-25LET | 25 | 17.6 | 246.0 | 3.96 |
| HBD-32LEP/HBD-32LET | 32 | 31.2 | 442.0 | 4.75 | ||
| HBD-35LEP/HBD-35LET | 35 | 49.3 | 590.0 | 4.90 | ||
| HBD-50LEP/HBD-50LET | 50 | 97.6 | 136.5 | 6.80 | ||
| HBD-63LEP/HBD-63LET | 63 | 176.0 | 2120.0 | 8,95 | ||
| HBD-80LEP/HBD-80LET | 80 | 293.0 | 3695.0 | 9.70 | ||
| HBD-100LEP/HBD-100LET | 100 | 580.0 | 7300.0 | 10.2 | ||
| HBD-125LEP/HBD-125LET | 125 | 597,0 | 7380.0 | 15.8 | ||
| HBD-160LEP/HBD-160LET | 160 | 1060.0 | 15440.0 | 19.0 | ||
| HBD-180LEP/HBD-180LET | 180 | 1540.0 | 27950.0 | 21.0 | ||
| 3 | LMP/LMT | HBD-160LMP/HBD-160LMT | 160 | 1065.0 | 15440.0 | 16.5 |
| HBD-200LMP/HBD-200LMT | 200 | 1460.0 | 19300.0 | 26.8 | ||
| HBD-250LMP/HBD-250LMT | 250 | 3100.0 | 38670.0 | 28.0 | ||
| HBD-315LMP/HBD-315LMT | 315 | 5830.0 | 72000.0 | 33.0 | ||
| HBD-350LMP/HBD-350LMT | 350 | 7760.0 | 97200.0 | 34.7 | ||
| HBD-400LMP/HBD-400LMT | 400 | 13550.0 | 153000.0 | 38.9 | ||
| HBD-450LMP/HBD-450LMT | 450 | 17470.0 | 210100.0 | 42.3 | ||
| HBB-500LMP/HBD-500LMT | 500 | 21250.0 | 259400.0 | 58.3 | ||
| HBB-550LMP/HBD-550LMT | 550 | 25500.0 | 313000.0 | 76.0 | ||
| 5 | LMMP/LMMT | HBD-400LMMP/HBD-400LMMT | 400 | 5830.0 | 76500.0 | 57.7 |
| HBD-500LMMP/HBD-500LMMT | 500 | 13600.0 | 162400.0 | 62.0 | ||
| HBD-630LMMP/HBD-630LMMT | 630 | 23200.0 | 285300.0 | 74.0 | ||
| HBD-710LMMP/HBD-710LMMT | 710 | 31000.0 | 437000.0 | 77.0 | ||
| HBD-800LMMP/HBD-800LMMT | 800 | 50400.0 | 569000.0 | 80.1 | ||
| HBD-900LMMP/HBD-900LMMT | 900 | 72600.0 | 758000.0 | 96.0 | ||
Ürünün genel boyutları (mm)
UL sertifikası:
