Ürün ayrıntıları:
|
| Malzeme: | Seramik | Sertifika: | UL |
|---|---|---|---|
| Koruma Tipi: | aR | Kapasiteyi aşmak: | DC20KA |
| Vurgulamak: | Seramik Yüksek Kopma Kapasiteli Sigorta,UL Yüksek Kırılma Kapasiteli Sigorta |
||

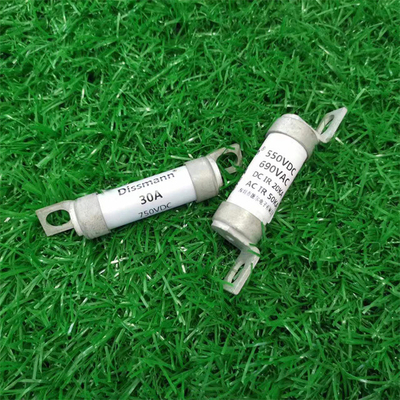

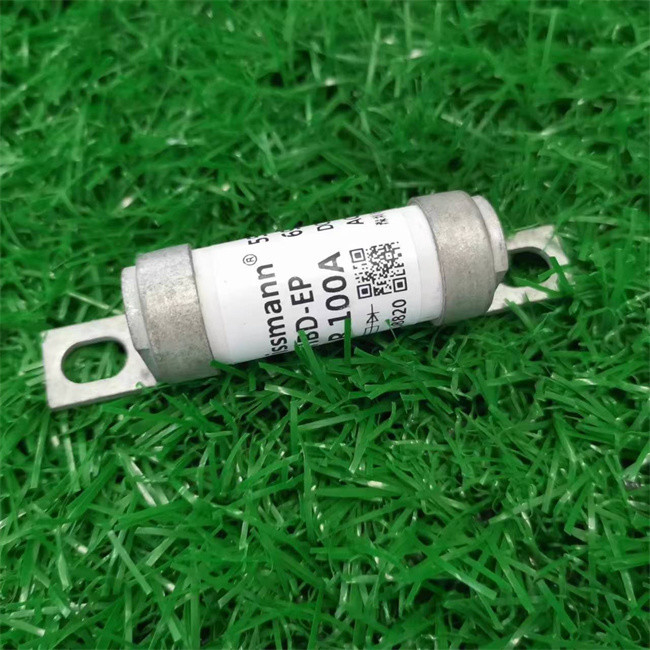

Bu ürün serisi, küçük hacimli ve yüksek kesme kapasiteli yuvarlak boru tipi hızlı sigortadır.Geniş bir sıcaklık aralığına uygulanabilir, yüksek mukavemetli mekanik titreşim ve darbeye, geniş sıcaklık etkisine ve güçlü kimyasal yüke dayanabilir, karayolu taşıtı endüstrisi uygulamaları için uygundur ve elektrikli araç sürüşünün kısa devre, aşırı yük ve yedek koruması olarak kullanılabilir güç sistemi, güç dönüştürme sistemi, enerji depolama ve güç pili, enerji depolama kondansatörü, frekans dönüştürme denetleyicisi, şarj cihazı, tel ve diğer araç cihaz ve ekipmanları.
1.DC750V BS88-HBD serisi sigorta(Anma akımı:6A-700A, Koruma tipi: aR, Kesme kapasitesi: DC20KA)
Ürün tipi:
|
Sayı |
modeli |
Ürün Kodu |
Anma akımı A |
I²t(A²Saniye) |
Güç tüketimi W |
|
| ark öncesi | Kaynaştırma | |||||
| 1 | CPL/CTL | HBD-6CPL/HBD-6CTL | 6 | 2.0 | 13.0 | 1.9 |
| HBD-10CPL/HBD-10CTL | 10 | 7.1 | 47.2 | 2.9 | ||
| HBD-12CPL/HBD-12CTL | 12 | 10.2 | 65.9 | 2.9 | ||
| HBD-16CPL/HBD-16CTL | 16 | 16.3 | 107.8 | 6.8 | ||
| HBD-20CPL/HBD-20CTL | 20 | 32.4 | 215.6 | 6.8 | ||
| 2 | EPL/ETL | HBD-16EPL/HBD-16ETL | 16 | 25.6 | 130.5 | 3.0 |
| HBD-20EPL/HBD-20ETL | 20 | 40.0 | 225.0 | 3.5 | ||
| HBD-25EPL/HBD-25ETL | 25 | 25.3 | 255.0 | 6.8 | ||
| HBD-32EPL/HBD-32ETL | 32 | 31.7 | 346.5 | 11.0 | ||
| HBD-35EPL/HBD-35ETL | 35 | 51.5 | 495.0 | 11.0 | ||
| HBD-40EPL/HBD-40ETL | 40 | 104.0 | 903.0 | 8.9 | ||
| HBD-45EPL/HBD-45ETL | 45 | 106.5 | 1110.0 | 10.0 | ||
| HBD-50EPL/HBD-50ETL | 50 | 118.5 | 1290.0 | 11.0 | ||
| HBD-56EPL/HBD-56ETL | 56 | 137 | 1530 | 13.7 | ||
| HBD-63EPL/HBD-63ETL | 63 | 168 | 1978 | 15.6 | ||
| HBD-80EPL/HBD-80ETL | 80 | 353 | 3890 | 18.0 | ||
| HBD-100EPL/HBD-100ETL | 100 | 1200 | 4350 | 17.0 | ||
| 3 | HPL/HTL | HBD-32HPL/HBD-32HTL | 32 | 108 | 13000 | 10.5 |
| HBD-40HPL/HBD-40HTL | 40 | 165 | 2100 | 13.0 | ||
| HBD-50HPL/HBD-50HTL | 50 | 260 | 3350 | 16.0 | ||
| HBD-63HPL/HBD-63HTL | 63 | 480 | 6000 | 19.0 | ||
| HBD-80HPL/HBD-80HTL | 80 | 900 | 11200 | 22.8 | ||
| HBD-100HPL/HBD-100HTL | 100 | 1460 | 18500 | 28.0 | ||
| HBD-125HPL/HBD-125HTL | 125 | 2400 | 30200 | 34.5 | ||
| HBD-160HPL/HBD-160HTL | 160 | 4300 | 54000 | 37.5 | ||
| HBD-200HPL/HBD-200HTL | 200 | 8100 | 101000 | 40.0 | ||
| 4 | EEPL/EETL | HBD-90EEPL/HBD-90EETL | 90 | 492 | 4510 | 19.0 |
| HBD-110EEPL/HBD-110EETL | 110 | 605 | 6565 | 26.5 | ||
| HBD-140EEPL/HBD-140EETL | 140 | 1060 | 11880 | 34.0 | ||
| HBD-160EEPL/HBD-160EETL | 160 | 1470 | 16490 | 38.2 | ||
| 5 | SML/STL | HBD-180SML/HBD-180STL | 180 | 1358 | 13230 | 39.0 |
| HBD-200SML/HBD-200STL | 200 | 2548 | 17760 | 40.0 | ||
| HBD-225SML/HBD-225STL | 225 | 3552 | 25200 | 42.8 | ||
| HBD-250SML/HBD-250STL | 250 | 4990 | 3560 | 47.5 | ||
| HBD-280SML/HBD-280STL | 280 | 6860 | 51000 | 48.2 | ||
| HBD-315SML/HBD-315STL | 315 | 9760 | 71600 | 54.5 | ||
| HBD-350SML/HBD-350STL | 350 | 14100 | 96600 | 55.6 | ||
| HBD-400SML/HBD-400STL | 400 | 18500 | 125000 | 58.0 | ||
|
6
|
SMML/STTL
|
HBD-400SMML/HBD-400STTL | 400 | 9680 | 69600 | 83.9 |
| HBD-450SMML/HBD-450STTL | 450 | 14000 | 94800 | 90.0 | ||
| HBD-500SMML/HBD-500STTL | 500 | 19200 | 136500 | 99.8 | ||
| HBD-550SMML/HBD-550STTL | 550 | 27600 | 195650 | 100.3 | ||
| HBD-630SMML/HBD-630STTL | 630 | 40800 | 272800 | 101.9 | ||
| HBD-700SMML/HBD-700STTL | 700 | 54000 | 373800 | 119.2 | ||
|
Sayı |
modeli |
Ürün Kodu |
Anma akımı A |
I²t(A²Saniye) |
Güç tüketimi W |
|
| ark öncesi | Kaynaştırma | |||||
| 1 | CPJ/CTJ | HBD-6CPJ/HBD-6CTJ | 6 | 2.2 | 13.5 | 2.0 |
| HBD-10CPJ/HBD-10CTJ | 10 | 7.4 | 48.0 | 3.0 | ||
| HBD-12CPJ/HBD-12CTJ | 12 | 10.5 | 67 | 3.2 | ||
| HBD-16CPJ/HBD-16CTJ | 16 | 17.0 | 110 | 7.0 | ||
| 2 | EPJ/ETJ | HBD-16EPJ/HBD-16ETJ | 16 | 26.0 | 132 | 3.2 |
| HBD-20EPJ/HBD-20ETJ | 20 | 41.0 | 228.0 | 3.5 | ||
| HBD-25EPJ/HBD-25ETJ | 25 | 26.5 | 257.0 | 7.0 | ||
| HBD-32EPJ/HBD-32ETJ | 32 | 33.0 | 350.0 | 11.0 | ||
| HBD-35EPJ/HBD-35ETJ | 35 | 52.8 | 500.0 | 11.2 | ||
| HBD-40EPJ/HBD-40ETJ | 40 | 108.0 | 910.0 | 9.0 | ||
| HBD-45EPJ/HBD-45ETJ | 45 | 110.0 | 1100.0 | 9.6 | ||
| HBD-50EPJ/HBD-50ETJ | 50 | 123.0 | 1250.0 | 10.8 | ||
| HBD-56EPJ/HBD-56ETJ | 56 | 140.0 | 1550.0 | 13.5 | ||
| HBD-63EPJ/HBD-63ETJ | 63 | 170.0 | 1990.0 | 15.5 | ||
| HBD-80EPJ/HBD-80ETJ | 80 | 360.0 | 4000.0 | 18.0 | ||
| 3 | HPJ/HTJ | HBD-32HPJ/HBD-32HTJ | 32 | 110 | 1300 | 10.8 |
| HBD-40HPJ/HBD-40HTJ | 40 | 170 | 2200 | 13.0 | ||
| HBD-50HPJ/HBD-50HTJ | 50 | 270 | 3400 | 16.0 | ||
| HBD-63HPJ/HBD-63HTJ | 63 | 490 | 6100 | 19.3 | ||
| HBD-80HPJ/HBD-80HTJ | 80 | 920 | 11400 | 23.0 | ||
| HBD-100HPJ/HBD-100HTJ | 100 | 1500 | 18800 | 28.5 | ||
| HBD-125HPJ/HBD-125HTJ | 125 | 2500 | 30800 | 34.0 | ||
| HBD-160HPJ/HBD-160HTJ | 160 | 4400 | 54800 | 37.3 | ||
| 4 | EEPJ/EETJ | HBD-90EEPJ/HBD-90EETJ | 90 | 500 | 4510 | 19.0 |
| HBD-110EEPJ/HBD-110EETJ | 110 | 610 | 6700 | 26.5 | ||
| HBD-140EEPJ/HBD-140EETJ | 140 | 1100 | 12000 | 34.0 | ||
| HBD-160EEPJ/HBD-160EETJ | 160 | 1600. | 17000 | 38.0 | ||
| 5 | SMJ/STJ | HBD-180SMJ/HBD-180STJ | 180 | 1390 | 13400 | 39.2 |
| HBD-200SMJ/HBD-200STJ | 200 | 2600 | 17900 | 40.0 | ||
| HBD-225SMJ/HBD-225STJ | 225 | 3600 | 25400 | 42.5 | ||
| HBD-250SMJ/HBD-250STJ | 250 | 5050 | 36000 | 47.0 | ||
| HBD-280SMJ/HBD-280STJ | 280 | 6950 | 52000 | 48.0 | ||
| HBD-315SMJ/HBD-315STJ | 315 | 9900 | 72800 | 54.0 | ||
| HBD-350SMJ/HBD-350STJ | 350 | 14400 | 98000 | 55.5 | ||
| HBD-400SMJ/HBD-400STJ | 400 | 19000 | 128000 | 58.0 | ||
| 6 | SMMJ/STTJ | HBD-400SMMJ/HBD-400STTJ | 400 | 9800 | 69700 | 84.0 |
| HBD-450SMMJ/HBD-450STTJ | 450 | 14300 | 96000 | 90.0 | ||
| HBD-500SMMJ/HBD-500STTJ | 500 | 19500 | 138000 | 97.5 | ||
| HBD-550SMMJ/HBD-550STTJ | 550 | 27900 | 197000 | 100.0 | ||
| HBD-630SMMJ/HBD-630STTJ | 630 | 41200 | 275000 | 102.0 | ||
| HBD-700SMMJ/HBD-700STTJ | 700 | 55500 | 375000 | 119.5 | ||
